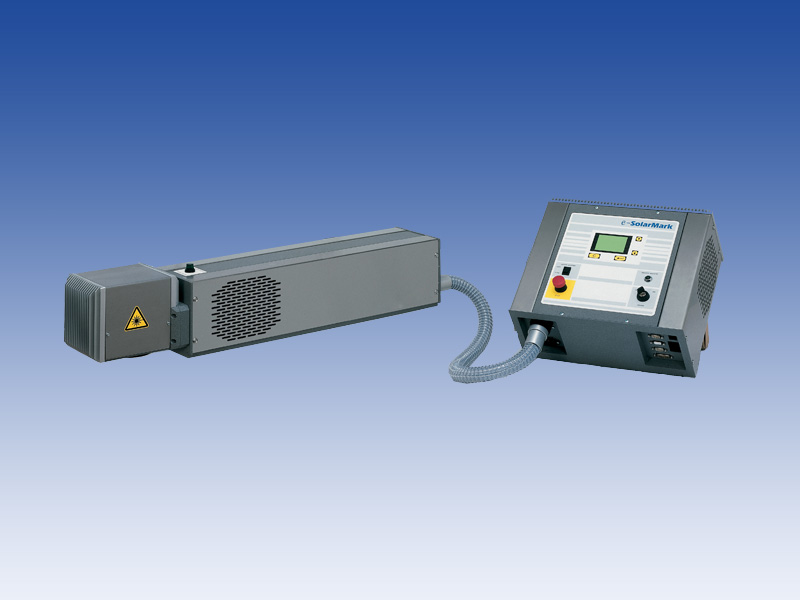

Modison laser (PE Private)
- 产品编号：Pro200669163754
- 产品型号：Modison laser PE
- 生产厂商：Modison
- 发布时间：2011-11-23
- 下一产品：马肯激光喷码机
- 有 个访客关注本产品
Laser output power: closed laser tube with carbon dioxide, average laser gas life-span with 30,000 hours
Input power: 230V 50Hz/115V 60Hz, 1PH (10W) or 230V 50Hz/115V 60Hz, 1PH (30W) Consuming Power: 450W (10W) or 700W (30W)
Operation Circumstances: the operation temperature 5-45℃(40-115°F), the humid of non-conge nation up to 80%.
Protection Brand: IP50, NEMA 12/IP66, NEMA 4(should require)
Post add.: USB/RS232/Ethernet 10 Base T
Axle horn encoder input
Product detector input: NPN/PNP 24V detector
Input/output link: supply systems with the connected device, long-distance begin/stop, prepare, mark, error signal.
SolMark Ⅱediting software suit: Windows 9x, NT, 2000, ME, XP
Print speed: 1600W/sec, height: 2mm, depending on lens and materials
Lens type: LF2、LF3、LF4、LF5、LF8
Inscribing scope: 50*50、80*80、100*100、120*120、200*200
