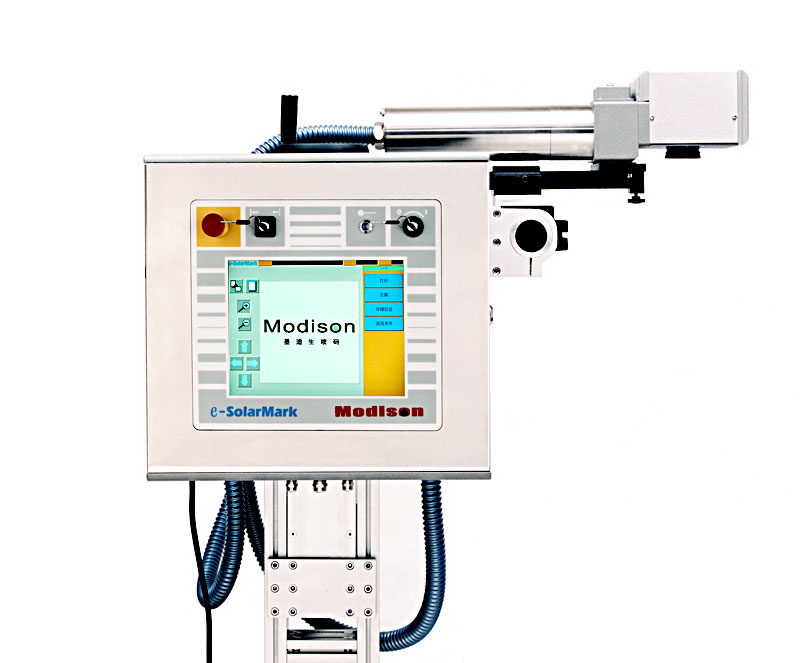

Modison laser FL
- 产品编号：Pro200669163754
- 产品型号：Modison laser FL
- 生产厂商：Modison
- 发布时间：2011-11-23
- 下一产品：马肯激光喷码机
- 有 个访客关注本产品
Laser output power: 20w
Wavelength: 1062nm
Usage lifetime: 10,000hours on avg
Input power: 230V 50Hz/115V 60Hz, 1PH
Consuming power: 400w
Control: integrated air-cooling
operational temperature: ：5-40℃（40－105°F）; suggested 20-25℃（68-77°F） 5-40℃（40－105°F）; suggested 20-25℃（68-77°F）
Communication: USB/RS232/Ethernet 10 Base T
Axial encoder input: recommended encoder graphic resolution: 196 pulse per marking range length
Product encoder input: NPN/PNP 24V detector
Input /output connective port: provide with system associated set, remote on/off, ready, mark, error signal
SOLMark 2 duty programming software application: Windows 9x, NT, 2000, ME. XP,
Marking indicate
Marking speed: 1600w/s
Apply to the red laser cursor of preview at mark
Apply to the system of marking on highly sensitive plastic material
Apply to local duty creation/modifying contacting GUI control unit interface
Apply to local duty modifying control unit interface of letter keyboard
Air / powder assimilator (with active carbon filter)
Product detector and axial encoder
With the growing advancement of the product, we will not inform the changes of specification (indication)
Correspond to CE and CDRH standard
